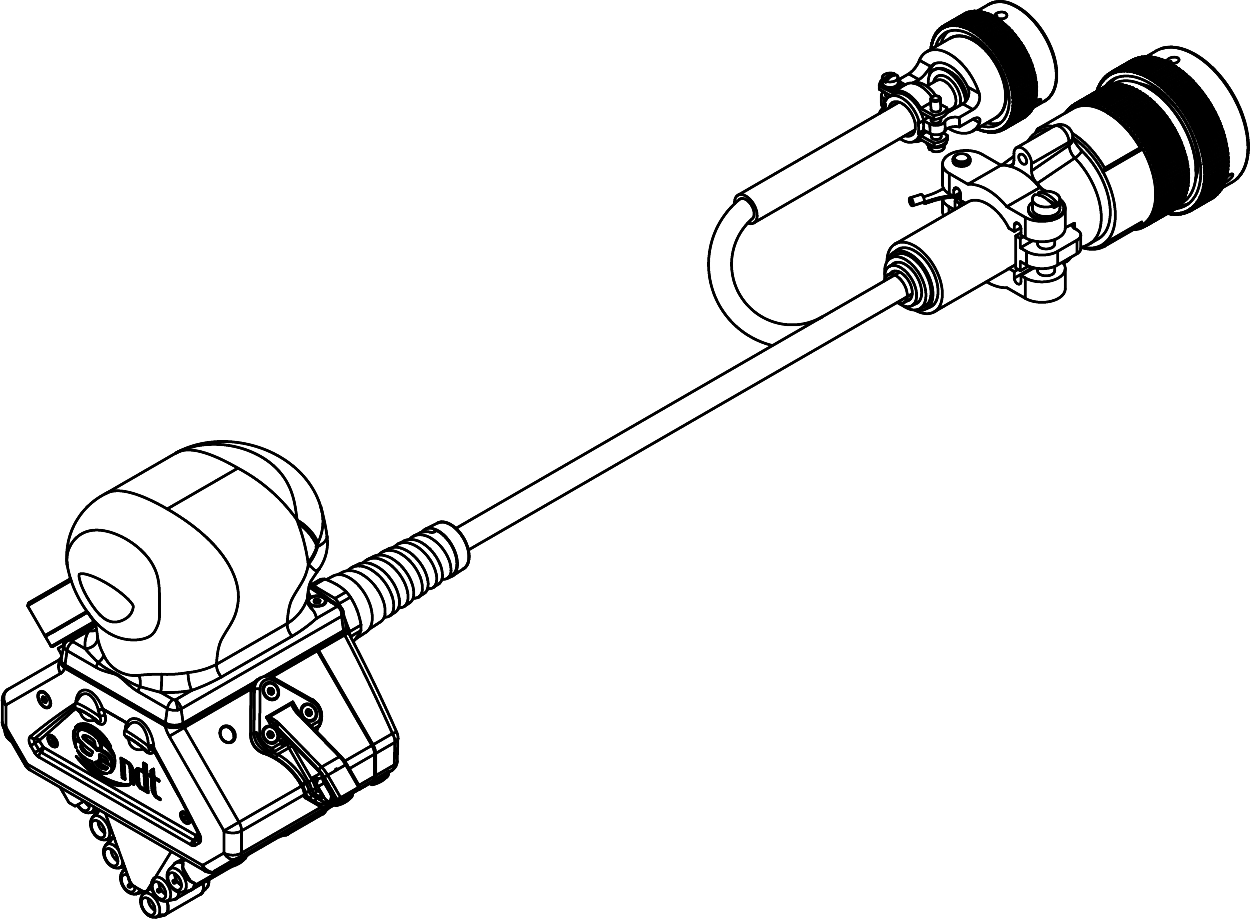

WAVE-090
Precision where it matters most.
Specially designed for handheld inspections of carbon steel and stainless-steel fillet welds, the WAVE-090 delivers fast, accurate manual inspection with large coverage — the go-to choice for proof-of-concept trials and pinpointing specific defect locations with confidence.
The probe is equipped with dynamic lift-off technology, which makes it ideal for inspecting painted welds without having to remove the paint. The probe’s memory stores calibration data, making it easy to use and access when needed.
- Features
- Includes
- Options
- Applications
- Weld TypesButt Welds & 90° fillet welds
- Frequency50kHz fixed
- Probe coverage56mm
- TopologyTangential Coils
- 2 rows of 8 (16 total)
- Channels16 Depth Channels / 16 Length Channels
- (32 total)
- Resolution3.75mm
- Maximum lift-off4mm
- Typical penetration depthUp to 5mm
- Typical detectable defectSurface breaking crack
- Encoder40 counts/mm
- Probe with integrated cable and encoder
- Supplied in a rugged transport case
- 5m cable
- 10m cable
- Carbon steel butt weld inspection at manufacture or in-service
- No need for coating removal as this probe has automatic lift-off compensation
